Meritor Cs9 / Cs10:5, Q & Q Plus - 16.5"X7"
| ITEM | PART NO. | DESCRIPTION | ITEM | PART NO. | DESCRIPTION | |
| 1 | CH0508 | Capscrew | 22 | FB3100 | Circlip | |
| 2 | CH9035 | Lockwasher | 23 | Capscrew | ||
| 3 | AP4026 | Hub Cap 6 Hole - Grease | 24 | AB1157S | Air Chamber 30/30 | |
| 3a | AP4031 | Hub Cap 6 Hole - Oil | 25 | CH9036 | Lockwasher | |
| 4 | AP4042 | Hub Cap Gasket 5/6 hole | 26 | CH5530 | Locknut | |
| 5 | AP4006 | Axle Nut - Outer | 27 | FB3005 | Camshaft Bracket Assembly | |

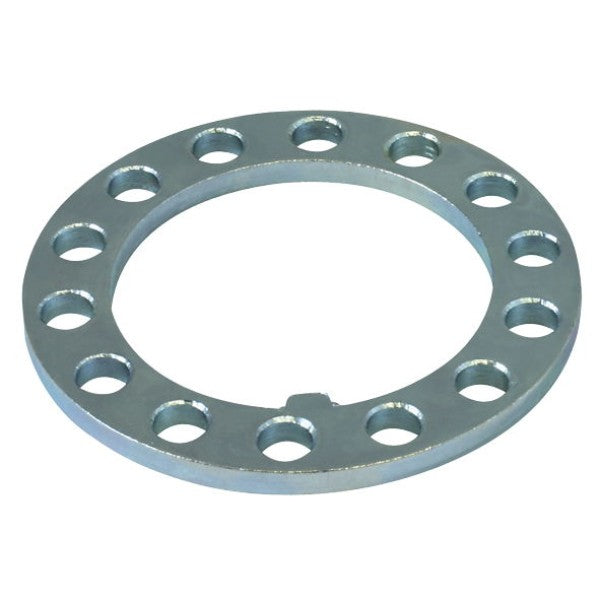

| 6 | AP4007 | Lockwasher | 28 | Capscrew | ||
| 7 | AP4008 | Axle Nut - Inner | 29 | FB3102 | Spacer Washer 1 1/2” | |
| 8 | AP0609T | Cone Outer Bearing | 30 | CH5510 | Locknut - Slack Adj. | |
| 9 | AP0608T | Cup Bearing Outer | 31 | FB5027 | Slack Adj. - Manual | |
| 10 | AP0875 | Brake Drum 10 stud 285mm PCD | 31a | Slack Adj. Auto 152mm | ||
| 10a | AP0876 | Brake Drum 10 stud 335mm PCD | 32 | FB3203 | Washer Slack Adj. | |
| 10b | AP0855K | Brake Drum 5 Spoke | 33 | FB3205 | Circlip Slack Adj. | |

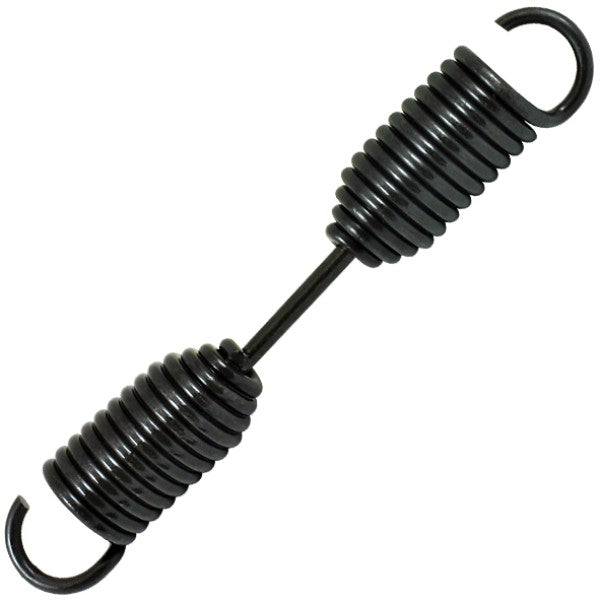

| 10c | AP0888 | Brake Drum 10 Stud 285 Centrufuse | 34 | FB3451 | Brake Shoe Return Spring | |

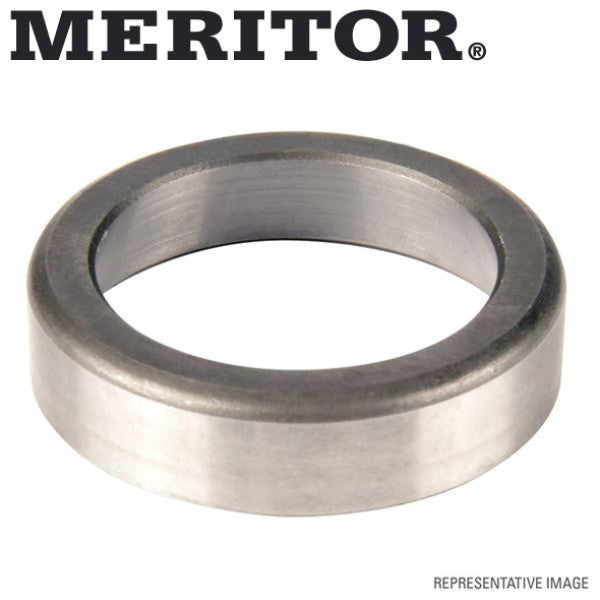

| 11 | AP0610T | Cup - Bearing Inner | 35 | FB4012 | Brake Shoe/Lined Wheel Set | |

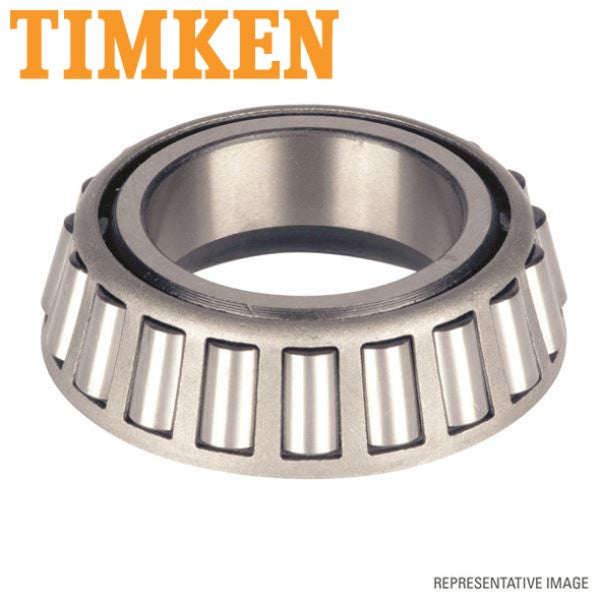

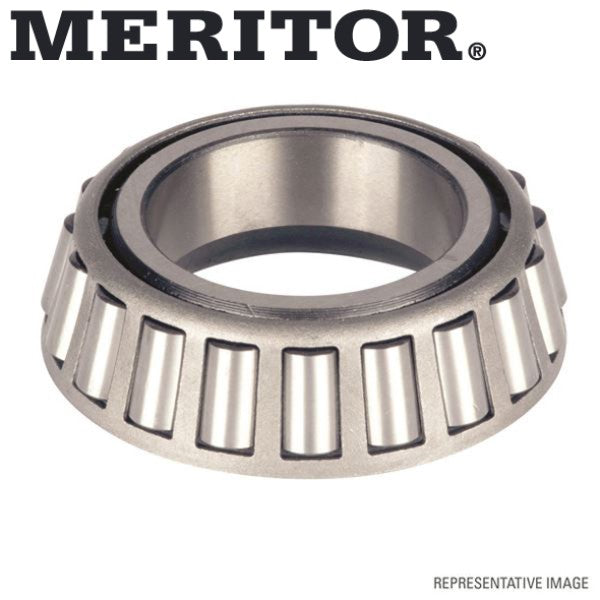

| 12 | AP0611T | Cone - Bearing Inner | 35a | FB4049AF557 | Q Plus Shoe/Lined Wheel Set | |
| 13 | AP4550S | Seal Wheel Bearing | 36 | FB3449 | Spring Brake Shoe Retaining | |

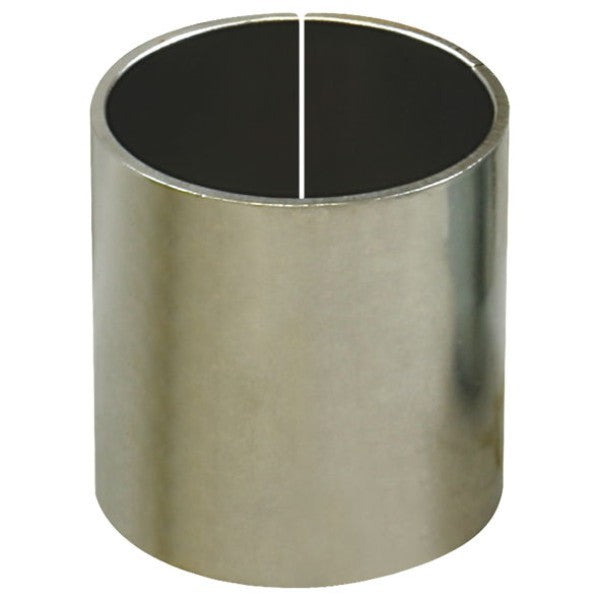

| 14 | FB3207 | Stainless Steel Bush 1 5/8” | 37 | FB3441 | Retainer Brake Shoe Roller | |
| 15 | FB3237 | Pin Anchor | 38 | FB3403 | Standard Brake Roller | |
| 16 | Beam Axle | 39 | FB3452 | Retainer Pin | ||
| 17 | FB1921 | Camshaft L/H 583mm (Pre 2015) | 40 | FB5100 | Dust Shield | |
| 17a | FB1911 | Camshaft L/H 602mm (2015 onward) | 41 | AP3321 | Hub 5 Spoke | |
| 18 | FB1922 | Camshaft R/H 583mm (Pre 2015) | 41a | AP3328S | Hub 10 stud 285 Short Stud | |
| 18a | FB1912 | Camshaft R/H 602mm (2015 onward) | 41b | AP3328A | Hub 10 stud 285 Long Stud | |
| 19 | FB3106 | Washer | 41c | AP3329S | Hub 10 stud 335 Short Stud | |
| 20 | FB3118 | Seal | 41d | AP3329A | Hub 10 stud 335 Long Stud | |
| 21 | FB2233 | Bushing | 41e | AP3374 | Hub & Drum Assy. 10x285 Suit Long Stud, Preset Bearings |
|
| 21A | FB2076 | Camshaft Cover 526mm (2015 onward) | 42 | AB0875 | Booster Bracket |
| KITS | INCLUDES |
| FB3333 | Repair Kit. 1 Wheel Set. Included Items: 14, 15, 34, 36, 37, 38, 39 |
| FB2231 | Camshaft Bush, Washer & Circlip Repair Kit. (Pre 2015) Included Items: 19, 20, 21, 22, 23, 27, 28, 29, 30, 32, 33 |
| FB3334 | Q Plus Brake Hardware Kit Included Items: 34, 36, 37, 38, 39 |
