Fuwa Fb24 Hd Disc Brake Axle
| ITEM | PART NO. | DESCRIPTION | ITEM | PART NO. | DESCRIPTION | |
| 1 | - | Beam 150 Square x 16 | 9 | B31-0101 | Bolt - Hub Rotor - M16 - Hi-tensile | |
| 2 | FB4493G | Caliper Left Hand - PAN 22 | 10A | AP6010KT | Bearing Inner Kit | |
| 3 | FB4492G | Caliper Right Hand - PAN 22 | 10B | AP0608KT | Bearing Outer Kit | |
| 4A | B30-0103 | Flanged Bolt M16x1.5 Hi-tensile |
11 | AP4550CR | Seal (KH800120) | |
| 4B | B30-0202 | Flanged Shoulder Bolt M16 x 1.5 Hi-tensile |
11A | N300200-004 | Seal shield | |

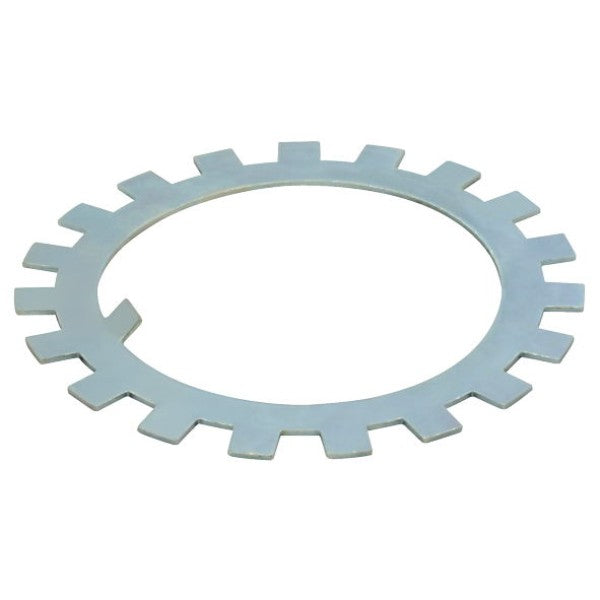

| B | FB4683 | Pad Set | 12 | AP4005 | Washer Bearing | |

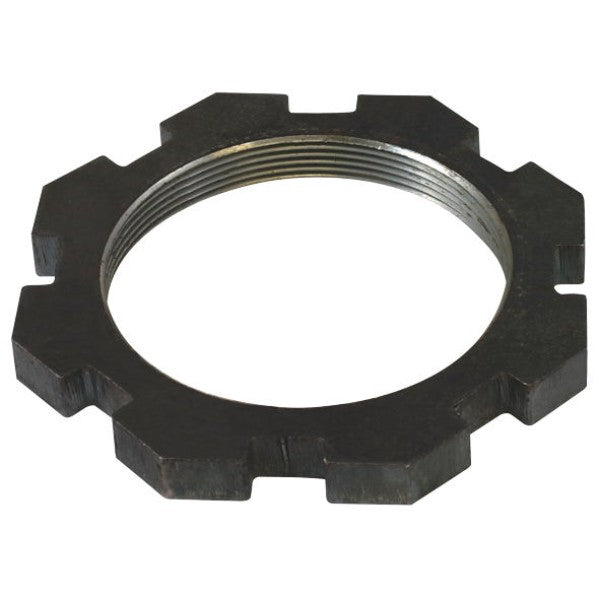

| C | FB2874 | Caliper seal kit | 13 | AP4004 | Spindle nut | |
| 5 | H31-6101DB | Hub 10 x 335 PCD | 14 | CH7512 | Cotter Pin | |

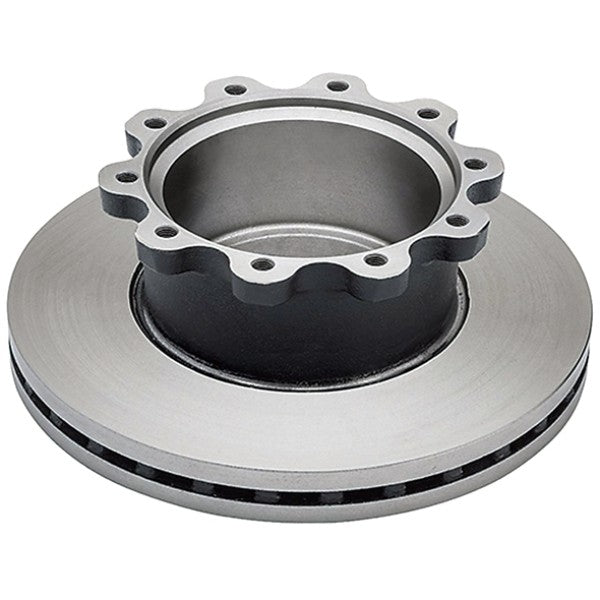

| 6 | AP3205 | Disc Brake rotor - 430mm | 15 | AP4024KH | Hup Cap - Screw on | |
| 7 | AP6092 | (H33-0301) Stud Short M22x94 | 16 | AP4021 | Ring Hup Cap | |
| 7 | AP6090 | (33-0302) Stud Long M22x122 | 17 | AB8690 | ABS Sensor Lead | |
| 8 | AP6085 | (H34-0301) Nut M22 x 32 A/F | 18 | AB8690 | Sleeve Sensor | |

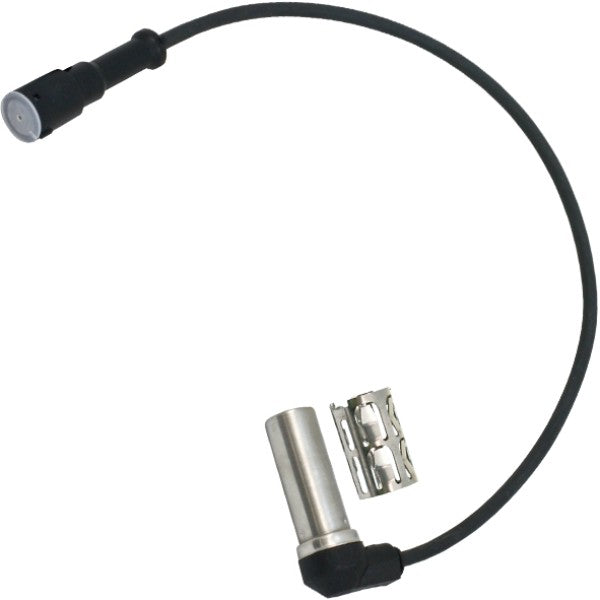

| 8 | AP6123 | (H34-0302) Nut M22 x 33 A/F | 19 | B16-0201 | Expansion Plug | |

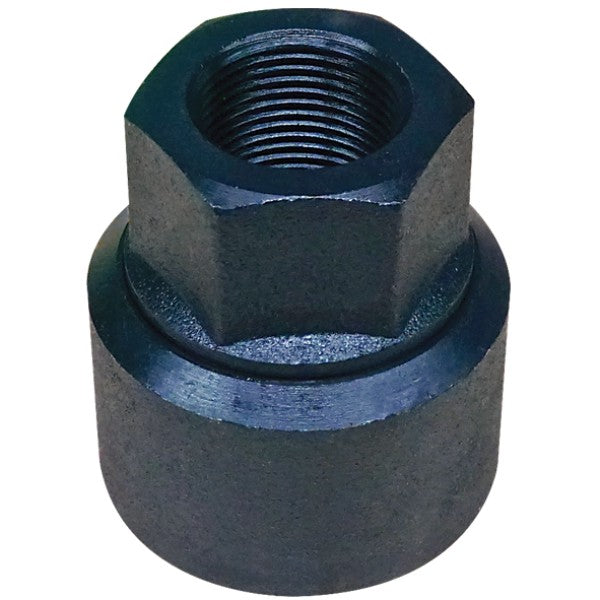

| 8 | AP6085LN | Nut M22 x 32 A/F 50mm high |
| MODEL NO. | HUB | BEARING OUTER | BEARING INNER |
| FB24 HD Disc Brake Axle WABCO PAN 22 430mm Rotor |

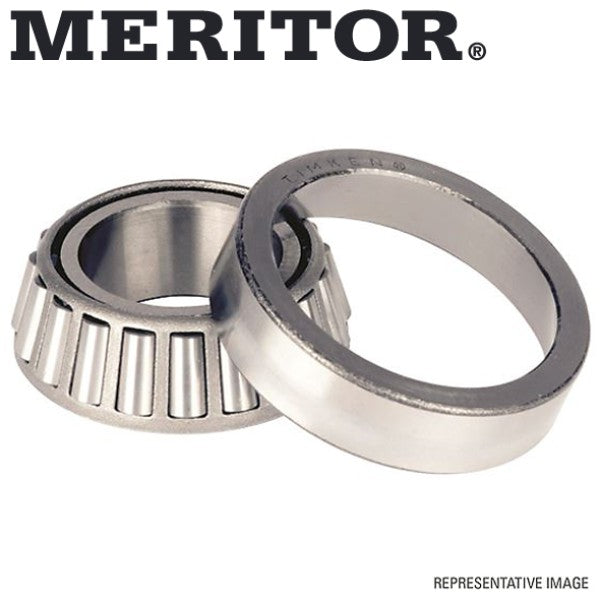

10 x 335 PCD 15/21 | 212049 / 212011 | 218248 / 218210 |
