Hendrickson Conventional Hn Disc Brake
| ITEM | PART NUMBER | DESCRIPTION | ... | ITEM | PART NUMBER | DESCRIPTION |
| 1 | D-33390 | Rotor, Disc Brake – 377mm | ... | 9 | AP4026 | Hub Cap. General Purpose |

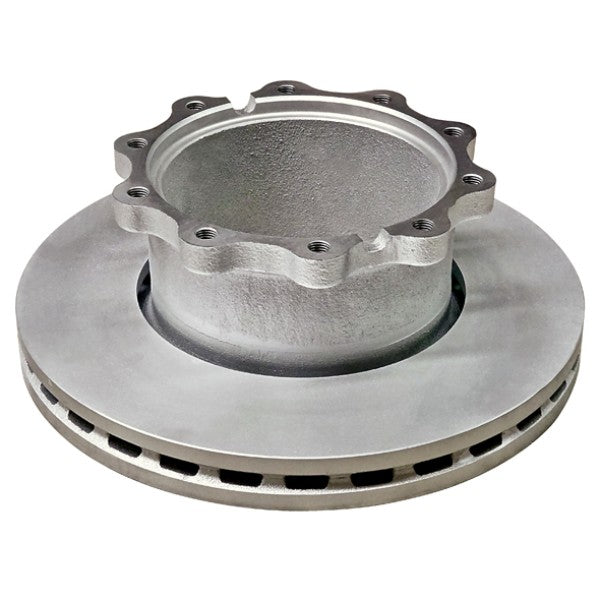

| FB3233G | Rotor, Disc Brake – 430mm | ... | 10 | CH0508 | Bolt & Washer Hub Cap. 5/16”UNC x 7/8” | |
| 2 | AP3448 | Hub Assembly – Ductile Iron, 8 Stud 275 PCD | ... | CH0481 | Bolt Hub Cap. 8 x 1.25 x 20L | |
| C-33381-6 | Hub Assembly – Ductile Iron, 10 Stud 335 PCD | ... | CH9035 | Washer Lock - 5/16”. Suits 335 PCD Hub | ||
| 3 | CH0669 | Bolt, Hub to Rotor. M16 x 2 x 35mm | ... | 11 | AB6091 | Stud, Wheel. M22 x 1.5 x 122mm |
| CH0699 | Bolt, Hub to Rotor – Zinc. M16 x 2 x 45mm | ... | 12 | AB6453 | Filler Plug – 3/8”-18 NPT | |
| CH9011 | Washer, Zinc Flat – 5/8” 10. Suits 430mm Rotor | ... | 13 | 98814-017 | Kit, ABS Tone Ring & Locking Pin. Suit 430mm Rotor | |
| 4 | AP0608KT | Bearing. Cone & Cup | ... | 14 | AP0610KT | Bearing. Cone & Cup |
| 6 | A-20492 | Spindle Nut Kit – HN | ... | 16 | 98794-012 | Seal, Spindle Mounted – Standard Fitment |
| 7 | A-24695 | Nut Wheel, Standard (without spacer) M22 x 1.5 | ... | S-27267 | Seal, Hub Mounted – Alternative Option | |
| AP6085 | Nut Wheel, Long (with spacer) M22 x 1.5 | ... | AP4550CRSXL | Seal, Hub Mounted – Alternative Option | ||
| 8 | AP4045 | Gasket, Hubcap. General Purpose | ... |
KITS
| PART NUMBER | DESCRIPTION |
| AP3448 | Hub Assembly – Ductile Iron, 8 Stud 275 PCD. Items: 2, 4, 11, 12, 14 |
| 98800-010 | Bearing Rebuild Kit. Items: 4, 5, 8, 14, 15, 16 |
| C-33874-4 | Hub & Rotor Kit - 8 Stud 275 PCD - 377 mm. Items: 1, 2, 3 |
| C-34578-4 | Hub & Rotor Kit - 10 Stud 335 PCD - 430 mm. Items: 1, 2, 3 |
