Hendrickson Hxl2 & Hxl5 Hn Disc Brake 19.5 & 22.5

Filter

ITEM	PART NUMBER	DESCRIPTION	...	ITEM	PART NUMBER	DESCRIPTION

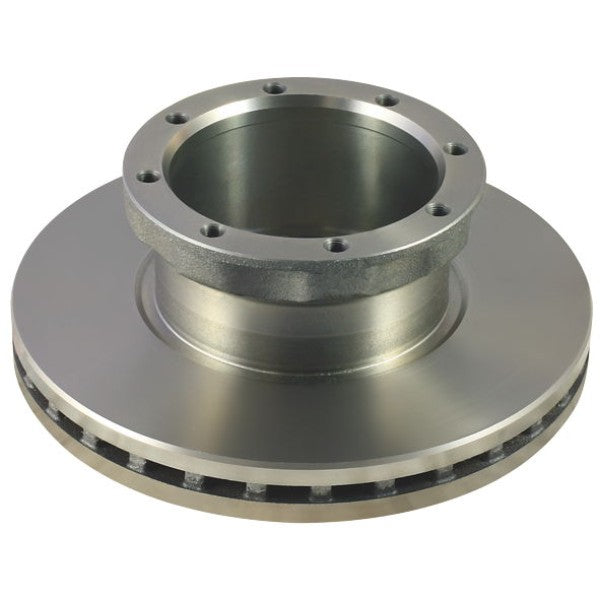

1	AP3206	Rotor Assy Iron 377mm	...	10	A-32098	Gasket, Hubcap

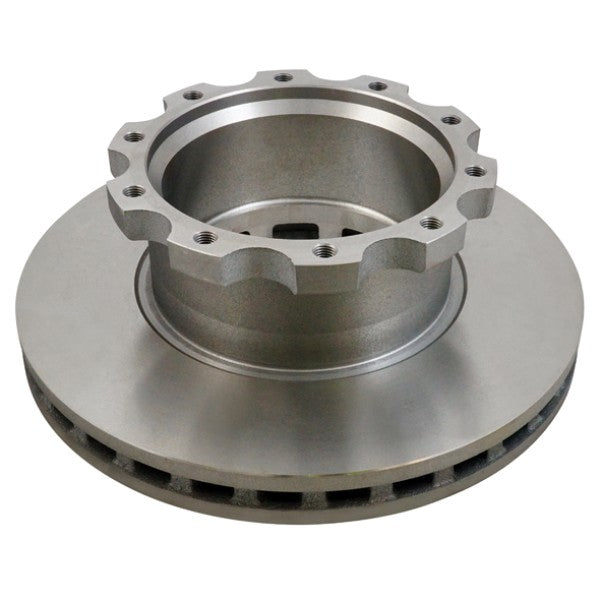

1	AP3201	Rotor Assy Iron 430mm. ABS Ready	...	11	98846-059P	Hub Cap HXL 2
2	-	Hub	...	11	98846-062P	Hub Cap HXL 5

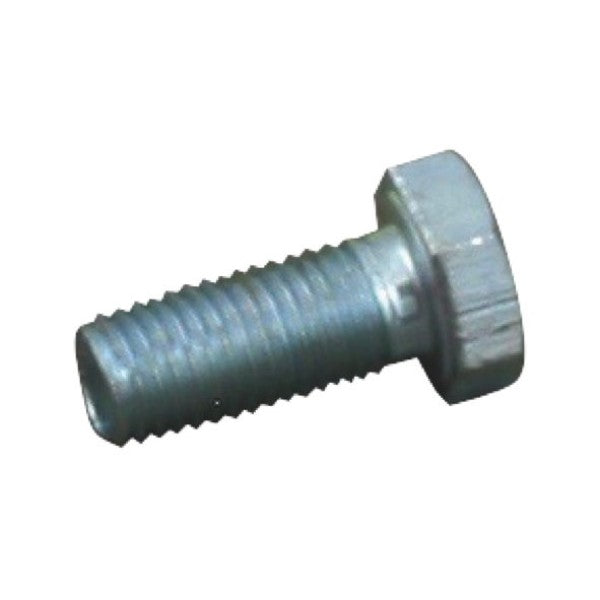

3	CH0669	Bolt, Hub to Rotor – M16 x 2 x 35mm (377mm Rotor)	...	12	CH0508	Bolt & Washer Hub Cap 5/16”UNC x 7/8”
	CH9011	Washer, Zinc Flat – 5/8”	...		CH0481	Bolt Hub Cap - 8 x 1.25 x 20L
	CH0669	Bolt, Hub to Rotor – Zinc M16 x 2 x 45mm	...		CH9035	Washer Lock - 5/16”. Suits 335 PCD Hub

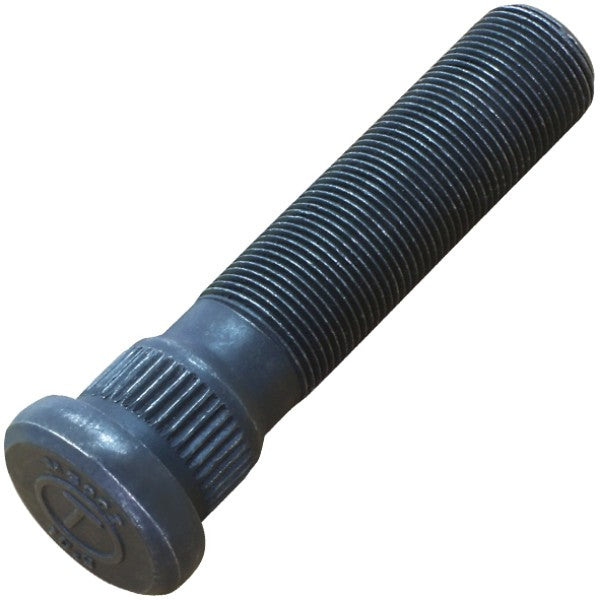

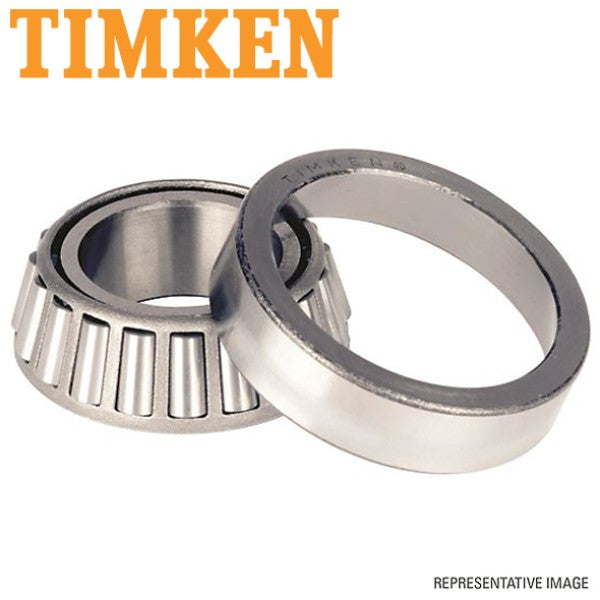

4	AP0608KT	Bearing Cone & Cup	...	13	98900-022	Stud, Wheel – Aluminium Hub M22 x 1.5 x 126mm
6	-	Spindle Nut – PRECISION240	...	13	AP6091	Stud, Wheel – Ductile Iron Hub M22 x 1.5 x 122mm
7	-	Washer, Interlock – PRECISION240	...	14	98934-054	Filler Plug – 9/16”-18 UNF, Aluminium Hub
8	-	Cap Screw – Button Head, 1/4”-20 x 1/2”	...	14	AB6453	Filler Plug – 3/8”-18 NPT, Ductile Iron Hub

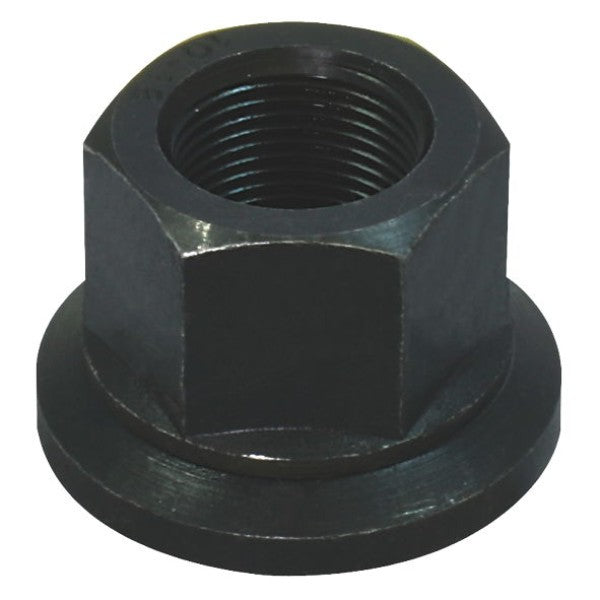

9	A-24695	Nut Wheel, Standard (without spacer) M22 x 1.5	...	16	AP0610KT	Bearing Cone & Cup

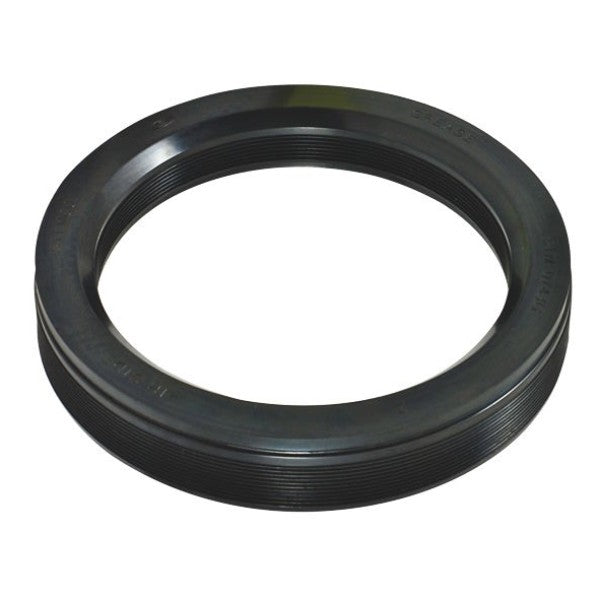

9	AP6085	Nut Wheel, Long (with spacer) – M22 x 1.5	...	17	AP4550	Seal, Hub Mounted. Special tool required.

PART NUMBER	DESCRIPTION
98801-074	Bearing Rebuild Kit Items: 4, 5, 10, 15, 16, 17
S-33332/2	Spindle Nut Kit Items: 6, 7, 8
AP3448	Rotor/Hub Replacement Kit, Ductile Iron Hub - 8 Stud 275PCD, 377mm Rotor Items: 1, 2, 3, 4, 5, 6, 7, 8, 10, 13, 14, 15, 16, 17
98818-066	Rotor/Hub Replacement Kit, ConMet Aluminium Hub with Bolt-On ABS Ring, 10 Stud 285 PCD, 430mm Rotor Items: 1, 2, 3, 4, 5, 6, 7, 8, 10, 13, 14, 15, 16, 17
98818-067	Rotor/Hub Replacement Kit, Ductile Iron Hub - 10 Stud 335PCD, 430mm Rotor Items: 1, 2, 3, 4, 5, 6, 7, 8, 10, 13, 14, 15, 16, 17
