Every Volvo FH D13 that rolls into a workshop with a flat battery, a squealing front end or a dash full of warning lights usually has the same story behind it. The problem is rarely the battery. It's the belt drive system feeding the alternator - a tensioner that stopped tensioning, an idler bearing that went dry, or a serpentine belt that's been slipping for 20,000 km without anyone noticing. If you're pricing up Volvo FH D13 parts online, this is the one area where buying the cheapest single component almost always costs you more.

This guide walks through how the FH D13C V2 engine bay electrical drive actually works, what the alternator is doing under load, and - the bit most people get wrong - when to replace the tensioner and pulleys together instead of one at a time.

What the Volvo FH alternator is actually doing

On a modern FH running the D13C, the alternator isn't just topping up a pair of batteries. It's carrying the entire 24V electrical load of a truck that has far more electronics than an FH12 ever did: EBS, the EMS engine controller, AdBlue dosing, climate control, cabin electronics, fridge, driving lights, and whatever the operator has bolted on since.

Most D13C applications run a 24V alternator in the 80A to 150A range, with 110A and 120A being the two you'll see most often in Australian fleets. The exact amperage depends on build year and spec - a highway single-trailer FH with a modest accessory load sits at the lower end, while a B-double running a fridge, extra lighting and a big inverter needs the higher output unit.

Two things matter more than the headline amp figure:

Output at idle. An alternator rated 120A doesn't make 120A at idle. Most heavy-duty units produce roughly 40–55% of rated output at engine idle. If a truck spends hours idling at a loading dock with the climate control running, a unit that looks oversized on paper can still run the batteries down.

Drive ratio and belt grip. The alternator pulley is small relative to the crank pulley, so it spins fast and takes real torque to turn - especially when the batteries are low and the regulator is asking for full field current. That load has to come through the serpentine belt. No belt grip, no charge. This is why a charging fault on a D13 is a belt drive problem at least as often as it's an electrical one. And when it genuinely is electrical, start at the cheap end first: a corroded holder or a blown link on the fuse and circuit protection side of the system accounts for more “dead alternator” callouts than most workshops care to admit.

The symptoms that point at the belt drive, not the alternator

• Battery light flickering under load, then clearing at higher revs

• A short squeal on cold start or when the A/C compressor kicks in

• Black belt dust collecting on the front cover and sump rail

• Voltage that reads fine at 1,500 rpm but sags badly at idle

• A glazed, shiny belt surface instead of a matte finish

Any of those and you check the drive system before you condemn a perfectly good alternator. Plenty of good units get replaced because nobody looked at the tensioner first.

How the D13C V2 belt drive is laid out

The D13C runs a serpentine layout — one long multi-rib belt doing the work that separate V-belts used to do - with a second, shorter belt on the fan side of the engine on many builds. That's the detail that catches people out when ordering: the FH D13C commonly uses two different ribbed belts, and they are not interchangeable.

The main serpentine belt wraps the crank pulley, alternator, water pump, A/C compressor and idler pulleys, with an automatic tensioner keeping everything loaded. The fan-side belt handles the viscous fan drive. You'll see part numbers like 10PK1545HD (10 ribs, 1545 mm) for the fan-side belt on the D13C 540 V4 - the "PK" number tells you rib count and length, which is how you confirm you're ordering the right one rather than going off a photo.

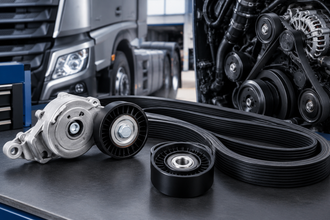

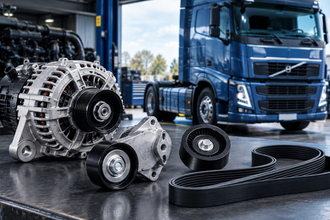

Around that belt path sit three component types that wear as a set:

The automatic belt tensioner. A spring-loaded arm with a pulley on the end. The spring provides constant tension as the belt stretches, and internal damping stops the arm oscillating every time the engine pulses. On Volvo and Renault D-series applications, tensioners such as the APV2739 (cross-referencing Volvo 20487079 / 21479274 / 21479276) cover the FM11 V2, FH D13C V2 and FH D13C 540 V4.

Idler pulleys. No spring, no adjustment - just a sealed bearing on a stud, redirecting the belt around the accessory path. They fail quietly. A dry idler bearing makes a whirring or growling noise that people mistake for a gearbox or a bearing deeper in the engine. Tired truck engine mounts make it worse, because an engine that shifts under torque drags the pulley alignment with it and the idlers wear the edges off the belt.

The serpentine belt itself. Modern EPDM belts don't crack the way old neoprene belts did. They wear by losing rib material, which means a belt can look perfectly fine and still be well past its useful life.

Get all three of those wrong together and the symptom you notice is a charging fault. That's the trap: the alternator gets the blame, the drive system did the damage, and nobody finds out until the replacement unit fails the same way.

Why you replace the tensioner and pulleys together

Here's the part fleets learn the expensive way.

An automatic tensioner is a wear item with a service life roughly matched to two belt changes. The spring loses rate over time and the internal damping breaks down. Neither failure is visible. The tensioner still looks like a tensioner, the arm still moves, and a quick squeeze test tells you almost nothing.

Fit a new belt to a tired tensioner and one of two things happens. Either the spring can't hold enough tension and the new belt slips under load - which is exactly the charging complaint you were trying to fix - or the damping is gone, the arm oscillates, and the belt gets hammered thousands of times a minute. A belt that should last 200,000 km starts shedding ribs at 60,000.

The same logic applies to idlers. A pulley bearing that's already noisy or rough will fail within months of a belt change, and when an idler seizes it takes the new belt with it. On a D13 the belt path is tight to reach, so most of the cost is labour, not parts. Doing the belt, tensioner and idlers in one hit costs maybe 30–40% more in parts and saves you the entire second job. If you run a mixed fleet, check the application before you order - our comparison of Volvo FH vs Volvo FM truck parts covers where the engine bay hardware carries over and where it very much doesn't.

Replace as a set when:

• The belt has done 200,000 km or more, whatever it looks like

• The tensioner arm has visible play at the pivot, or you can rock the pulley side to side

• Any pulley spins rough, gritty or noisy by hand with the belt off

• There's belt dust on the front of the engine

• The pulley face is scored, rusty, or has a polished groove worn into it

• You're already doing a water pump, viscous fan hub or A/C compressor - the belt is off anyway

There's a second reason to do it as a set, and it's about the alternator itself. An alternator doesn't usually die of old age - it dies because its bearings were side-loaded for months by a belt that was either too tight or flogging around on a bouncing tensioner arm. Rebuilders will tell you the same thing: a high proportion of failed heavy-duty units come in with dry front bearings and clean slip rings, which is a mechanical story, not an electrical one. Fit a new alternator into a worn drive and you've bought yourself another failure on the same clock.

The other trap is mixed-age components. A belt, a tensioner and three idlers that were all installed at different times give you five separate wear curves running at once, which makes diagnostic guesswork and means you're back in that engine bay roughly every 60,000 km chasing one noise at a time. Reset the whole system in one go and you get a clean baseline: everything ages together, everything comes out together next time, and a new noise actually means something.

The only time single-part replacement makes sense is a genuinely young engine - under 100,000 km - with one clearly failed component and everything else measurably good.

Checking the system properly

You don't need specialist gear for most of this, but you do need to be systematic. Do it in this order, and do it with the parts already on the shelf - operators around Victoria can pick the full range up over the counter through our truck parts Melbourne page, which beats stripping the front of an engine and then waiting on freight.

Belt wear. Forget cracks. EPDM belts wear by rib depth loss. Run a fingernail or a belt wear gauge across the ribs — if the valleys have flattened and the rib tips are rounded rather than defined, the belt has lost grip surface even if it looks healthy. Check for glazing too: a matte finish is normal, a shiny one means it's been slipping.

Tensioner travel. With the engine off, lever the tensioner through its full range. It should move smoothly, with resistance both ways, and return without snapping back. If it moves too freely, jumps back hard, or feels notchy, it's finished. Also check the wear indicator marks if your tensioner has them - if the pointer sits outside the operating window with a correctly sized belt fitted, the belt is stretched or the tensioner has lost rate.

Pulley bearings. Belt off, spin every pulley - tensioner, idlers, alternator, water pump, fan hub. Each should spin freely, run quietly and stop gradually. Grinding, wobble, side-to-side play or a bearing that stops dead all mean replacement. Do this with the engine cold and again warm if you can; some bearings only complain at temperature.

Alignment. Sight down the belt path with a straight edge or laser alignment tool. Every pulley should sit in the same plane. Misalignment throws belt dust, wears the belt edges, and destroys new parts quickly. If you find it, look at mounts, brackets and anything recently replaced.

Charging output. Test at the battery with the engine at fast idle and a load applied - lights, heater, whatever's on hand. On a healthy 24V system you want roughly 27.5–28.5V at the terminals. Low voltage with a good belt and tensioner points at the alternator or regulator. Low voltage with a belt that squeals under load points at the drive. For more on how the fan hub works and how to choose one, read our viscous fan hub guide.

Buying the right parts first time

3 rules save most of the grief.

Go by part number, not description. "Volvo FH belt tensioner" isn't a part. APV2739 is. The D13C went through several variants and the brackets, pulley widths and offsets changed. Get the number off the old part, or read it from the truck's chassis number.

Match the belt to the position. The fan-side belt and the main serpentine are different lengths and rib counts on most D13C builds. Order both if you're doing the full job, and check the PK code on each.

Buy quality on the tensioner. A cheap tensioner with a weak spring and poor damping is the single fastest way to destroy an expensive belt and an expensive alternator. Dayco, INA, Gates and OE Volvo are the names worth paying for. On the belt itself, heavy-duty ribbed construction matters - Australian linehaul work means heat, dust and long hours, and light-duty belts simply don't cope.

When you order, have the chassis number handy. FH builds vary enough between years and specs that VIN confirmation is the difference between a job that goes to plan and a truck sitting on a hoist waiting for the right box.

A realistic service interval

For Australian linehaul running:

Adjust down for tipper, mining haul road or heavy stop-start work - dust and vibration are harder on bearings than kilometres are.

Keeping records of this matters beyond just the truck. Belt drive and charging faults sit squarely inside roadworthiness territory, and the NHVR's National Heavy Vehicle Inspection Manual sets out the standards an authorised officer will assess against. Operators are encouraged to use it as a maintenance reference, not just an inspection checklist - a documented belt and charging inspection at every service is cheap insurance against both a defect notice and a roadside breakdown.

The short version

The alternator on a Volvo FH D13 is usually the symptom, not the cause. Check the belt, the tensioner and the idlers before you condemn it. When you do go in, do the whole drive system at once — the labour is the expensive part, and a new belt on a worn tensioner is a job you'll be doing twice. Order by part number, confirm against the chassis number, and don't save fifty dollars on the one component that protects everything else.

Get it right once and the front of that engine will be quiet for another 200,000 km.
