If your truck's temperature gauge has been creeping higher than it should, there's a good chance the viscous fan hub is on the way out. It's one of those parts that works quietly in the background until it doesn't, and when it fails, you'll know about it fast. The viscous fan hub on a truck is responsible for regulating how much airflow passes through the radiator, and it does that job thousands of times a day without you even thinking about it. Whether you're running an Actros on cross-country freight or a Volvo FH pulling doubles through the Pilbara, your truck engine parts need to be up to the task. A dodgy fan hub can turn a routine run into a roadside breakdown, and nobody wants that.
This guide breaks down how viscous fans actually work, the warning signs that yours is failing, and how to pick the right replacement for your specific truck model. Let's get into it.
What Does a Viscous Fan Hub Actually Do?
A lot of drivers know the fan spins behind the radiator, but most don't think too hard about what controls the speed of that fan. That's the viscous fan hub's job.
Inside the hub, there's a chamber filled with silicone fluid. When the engine is running cool, the fluid stays in a reservoir section and the fan freewheels, barely spinning at all. That saves fuel and reduces noise. When the engine temperature climbs, a bi-metallic sensor or thermostat at the front of the hub detects the rise in heat coming off the radiator. This triggers a valve that releases silicone fluid into the working chamber, which creates resistance between the drive plate and the housing. The fan locks up tighter and spins faster, pulling more air through the radiator to cool the engine down.
It's a simple, mechanical system, but it's critical. Without it, the fan either runs flat out all the time (wasting fuel and making a racket) or barely runs at all (which means your engine overheats).
In the Australian truck cooling system, viscous fans are doing extra work compared to European conditions. Summer temps pushing past 45 degrees in the outback, combined with heavy loads and long highway grades, mean the fan hub cycles between engaged and disengaged constantly. That kind of demand wears the unit out over time.
Warning Signs Your Viscous Fan Hub Is Failing
A failing viscous fan won't always give you a dramatic warning. Sometimes it's subtle, and by the time you notice, the damage has already started compounding. Here are the things to watch for.
Engine running hot under load. If your temps climb when you're pulling a hill or sitting in traffic with a full load, the fan may not be engaging properly. The silicone fluid inside the hub breaks down over time, and once it loses viscosity, the clutch can't lock the fan tight enough to move serious air. This is the single most common symptom, and a lot of operators write it off as just a hot day before the real trouble starts.
Fan spins freely when the engine is cold. This one sounds backwards, but it's a dead giveaway. If the fan keeps spinning at full speed even when the engine is cold, the internal valve has likely failed in the engaged position. You'll burn more fuel, the fan will be noisy, and the engine may actually run too cool. That leads to incomplete combustion and increased emissions.
Visible fluid leak on the hub. Check the face and back of the fan clutch housing. If you see oily, slightly shiny residue around the seals, the silicone fluid is leaking out. Once enough fluid escapes, there's nothing left to create the friction needed to drive the fan. This is a viscous fan replacement situation, not a repair.
Wobble or play in the fan assembly. If the bearing inside the hub is worn, you'll feel movement when you grab the fan blade. Any noticeable wobble means the bearing is on its way out, and a loose fan can cause secondary damage to the shroud, hoses, or even the radiator itself.

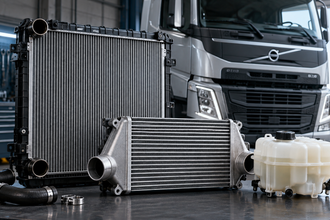

If you've been dealing with cooling issues and your radiator and intercooler have already been checked and cleared, the viscous fan hub is the next logical place to look.

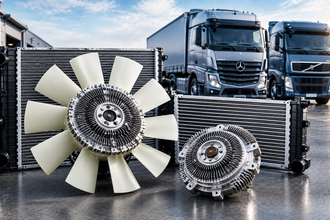

Choosing the Right Viscous Fan for Mercedes Actros (MP1 Through MP4)
Mercedes-Benz has used viscous fan hubs on the Actros since the MP1 was introduced in the mid-1990s. But not all Actros fan hubs are the same. The unit fitted to an MP1 running the OM501LA engine is physically different from the hub on an MP4 with the OM471. Getting the wrong one means it either won't bolt up properly, won't deliver enough airflow, or both.
Here's what to keep in mind when selecting an Actros viscous fan:
MP1 and MP2 models generally share a similar fan clutch platform, but always confirm the OEM part number. Engines in these trucks run the OM501 and OM502 series, and the fan hub needs to match the specific drive ratio and mounting pattern for those powertrains.
MP3 models introduced some changes to the cooling package, including revised fan shroud geometry and slightly different hub bolt patterns. If you're replacing a fan hub on an MP3, double check whether your truck has the standard or heavy-duty cooling option, because the hub specs differ between those configurations.
MP4 models are the newest in the Actros range and use a fan clutch designed around the OM470 and OM471 engine family. These hubs tend to be slightly larger and are engineered for the higher thermal loads of newer emissions-compliant engines. Make sure you match the part to the right engine variant.
Across all Actros generations, you'll also want to confirm whether your truck uses a direct-drive or belt-driven fan setup, because the hub mounting is different for each.
Choosing the Right Viscous Fan for Volvo FH and FM Models
Volvo trucks are all over Australian roads, and the FH and FM series are two of the most popular long-haul and distribution platforms in the country. Like the Actros, these trucks rely on a viscous fan clutch to manage cooling, and the correct replacement depends on the specific model year and engine variant.
When shopping for a Volvo viscous fan, here's what matters:
Volvo FH models with D12 and D13 engines use different fan clutch assemblies. The D12 was the workhorse of earlier FH trucks, while the D13 is the standard in later models. The D13 fan hub is generally larger and designed for a wider engagement range because of the higher power output and thermal demands of that engine.
Volvo FM models often run the same engine platform as the FH but in a different chassis configuration. The fan clutch may be identical, but the mounting bracket and drive arrangement can differ. Always confirm the part against your truck's VIN or the OEM reference number stamped on the existing hub.
Common Volvo-specific issues. Volvo fan clutches are known for bearing wear in high-dust environments, which is basically everywhere outside of metro Australia. If you're running in mining, agriculture, or outback freight, expect the fan hub to have a shorter service life than what the workshop manual suggests.
Tips for Getting the Replacement Right
Whether you're sourcing a part for an Actros or a Volvo, there are a few things that'll save you time and headaches.
Always match by OEM part number, not just by truck model. Truck manufacturers regularly update cooling system components across production runs. Two trucks of the same model and year can have different fan hubs depending on the factory build spec. The safest move is to pull the old unit and read the part number directly off it.
Don't mix brands with cheap knockoffs. A viscous fan hub is a precision component. The silicone fluid inside has to be the right grade, the bi-metallic coil has to respond at the correct temperature threshold, and the bearing has to be rated for the RPM range of your engine. Quality aftermarket units from reputable suppliers are fine, but stay away from no-name imports that don't publish specs.
Check the fan blade at the same time. If your fan hub has failed, there's a good chance the fan blade has been stressed too. Look for cracks, especially around the mounting holes and at the base of each blade. A cracked fan at highway RPM can cause catastrophic damage. It only takes a few minutes to inspect, and replacement blades are usually stocked alongside the hubs.
Stay on top of your maintenance schedule. The National Heavy Vehicle Inspection Manual published by the NHVR includes cooling system checks as part of regular heavy vehicle inspections. Building viscous fan hub inspections into your standard service routine helps catch problems early, before they leave you stranded or cause engine damage.
Keep Your Truck Cooling System Working Hard
The viscous fan hub might not get the same attention as your turbo or your injectors, but it's doing critical work every single kilometre. When it fails, engine temps climb, fuel economy drops, and you're staring at a repair bill that could have been a simple parts swap if you'd caught it sooner.
For Actros and Volvo operators across Australia, the key is knowing what to look for, matching the part to your exact truck, and sourcing from a supplier that understands heavy vehicle cooling systems. Pair your viscous fan replacement with fresh coolant and engine filters to give your cooling system the best shot at going the distance.
If you need help identifying the right viscous fan hub for your Actros or Volvo, get in touch with the team at Truck and Trailer Spares. We ship Australia-wide and we'll make sure you get the right part for your rig, the first time.
